HDMI USB Extender KVM, 100m 330ft, 4K 60Hz, Over Cat5e/6a, 4 Ports USB2.0, RS232, POE K991364
Sale price
$28.95
Regular price $136.66
Skip to product information
【4K@60Hz and 1080P@120Hz over 100m】HDBaseT2.0 uncompressed technology. Extends FULL UHD 4K@60Hz(YUV4:2:0 8bit) HDMI signal over single Cat 6/6a/7 cables up to 330ft/100m. With audio input and output port on transmitter and receiver, supports bi-directional 3.5mm stereo pass through.
【High-speed USB 2.0 up to 480Mbps】It provides remote source PC control with keyboard and mouse, interactive display operation,data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.
【MAIN FUNCTIONS】No video loss,no time delay, With one way PoE(from transmitter to receiver),RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;
【!NOTE!】It doesn't support HDCP; When connect with 2 or above USB devices on receiver,please make sure that the total power consumption less than 5V 0.5A.

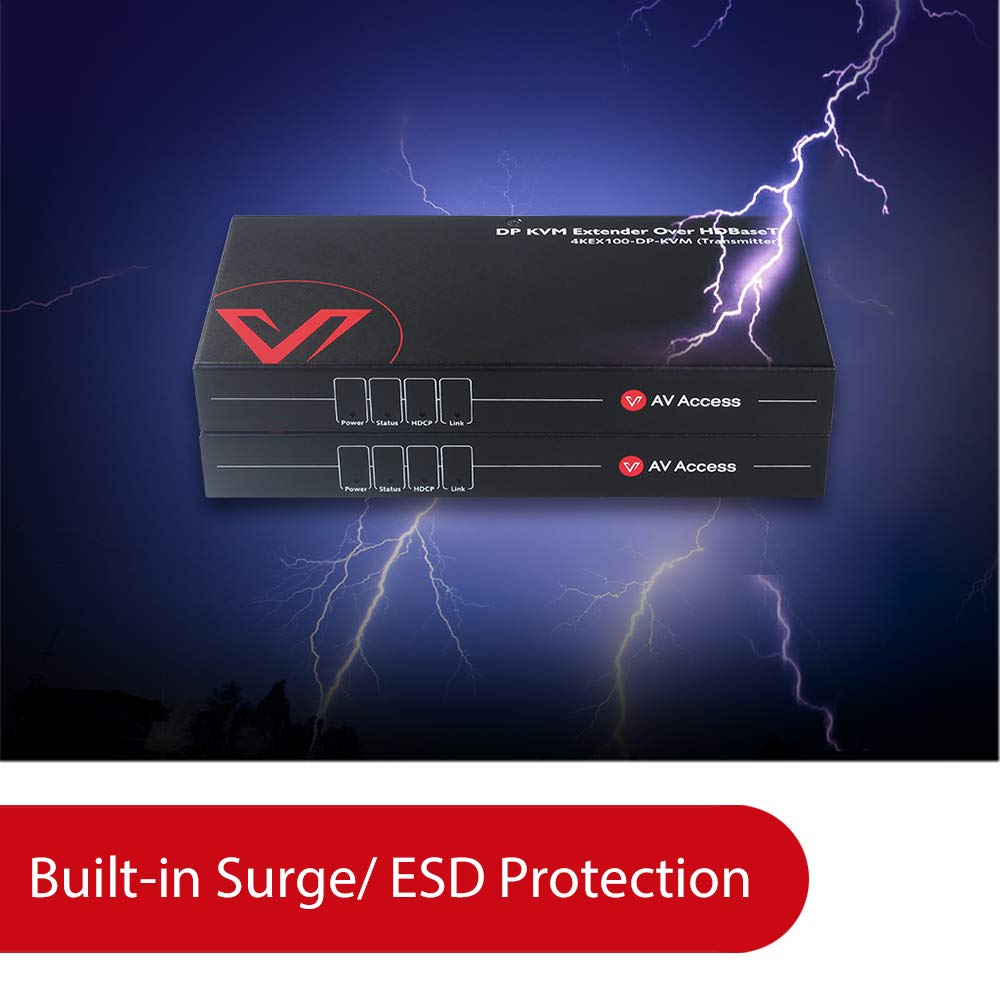

【DURABILITY】Certificated by FCC, CE. Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge);1-Year Warranty,and easy-to-reach friendly customer service (AV Access).
Electronics Computers & Accessories Computer Components
HDMI USB Extender KVM, 100m 330ft, 4K 60Hz, Over Cat5e/6a, 4 Ports USB2.0, RS232, POE K991364
Sale price
$28.95
Regular price $136.66
Shipping calculated at checkout.
【4K@60Hz and 1080P@120Hz over 100m】HDBaseT2.0 uncompressed technology. Extends FULL UHD 4K@60Hz(YUV4:2:0 8bit) HDMI signal over single Cat 6/6a/7 cables up to 330ft/100m. With audio input and output port on transmitter and receiver, supports bi-directional 3.5mm stereo pass through.
【High-speed USB 2.0 up to 480Mbps】It provides remote source PC control with keyboard and mouse, interactive display operation,data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.
【MAIN FUNCTIONS】No video loss,no time delay, With one way PoE(from transmitter to receiver),RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;
【!NOTE!】It doesn't support HDCP; When connect with 2 or above USB devices on receiver,please make sure that the total power consumption less than 5V 0.5A.
【DURABILITY】Certificated by FCC, CE. Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge);1-Year Warranty,and easy-to-reach friendly customer service (AV Access).
| U2EX50 | HDEX80-KVM | 4KEX100-KVM | 4KIP100-KVM | 4KEX100-DP-KVM | |
|---|---|---|---|---|---|
| Video Resolution | 1080p @60Hz | 4K@60Hz (4:2:0 8bit), 4K@30Hz 4:4:4, 1080p @60Hz | 4K@30Hz, 1080p @120Hz | 4K@30Hz | |
| Transmission Range | 165ft (50m) | 260ft (80m) | 330ft (100m) | 395ft (120m) | 330ft (100m) |
| USB Extension | Yes (4 Ports USB 2.0) | Yes (2 Ports USB 2.0) | Yes (4 Ports USB 2.0) | Yes (3 Ports USB 2.0) | Yes (2 Ports USB 2.0) |
| POE | Bi-Direction | Uni-Direction(TX to RX) | No | Uni-Direction(TX to RX) | |
| RS232 | No | ✓ | No | ✓ | |
| Video Port | USB | HDMI | HDMI | HDMI | DisplayPort |
| With Router/Ethernet Switch | No. Point to Point | No. Point to Point | Yes. Up to 16 Sets of TX and RX | No. Point to Point | |
| Plug & Play | ✓ | ✓ | ✓ | ✓ | ✓ |
| Video Signal | HDMI | HDMI | HDMI | DisplayPort |
