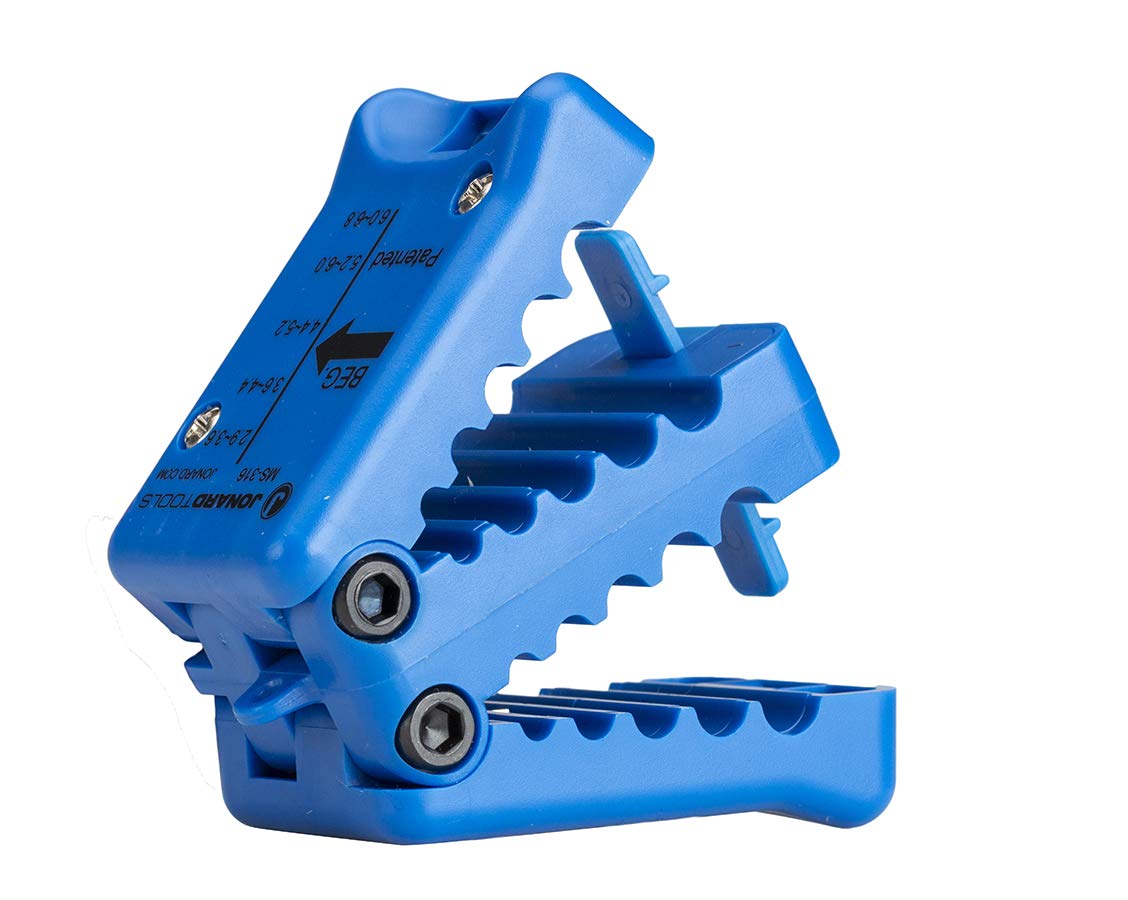

Micro Duct Fiber Optic Cable Slit & Ring Tool (5 mm - 10 mm) C50244
Micro Duct Fiber Optic Cable Slit & Ring Tool (5 mm - 10 mm) C50244
Easy operation: simply open the tool, place the fiber in the proper groove, Lock the tool, and either pull the fiber through to slit, or rotate the tool around the fiber to ring

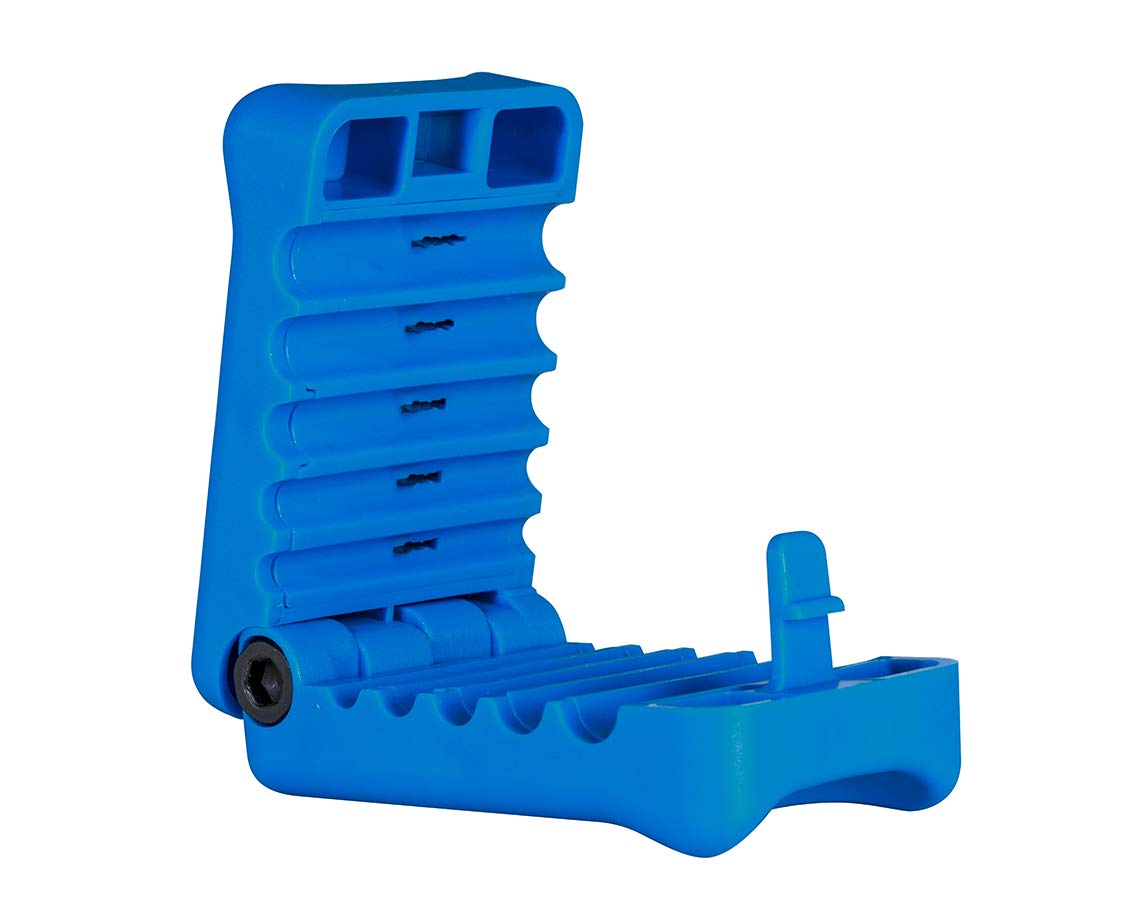

Versatile use: The slitter has 5 different sized precision grooves to accommodate cables 5 - 10 mm in diameter without damaging the fiber inside
Specially designed: for use on Corning fiber cables: minixtend fast access binder less, HD minixtend, and other similar styles
Lightweight and portable: weighing only 4 oz and measuring 2.87' X 1.5' X 2.1' With included tethering hole, This tool is perfect to use in tight spaces and on the go
Replacement blades: msb-5010 replacement blades can be purchased separately
The patented MS-326 Fiber optic Mid span slit and ring tool is designed to provide easy access into Fiber optic cables specifically used in micro ducts. These cables have a thin wall jacket design that is difficult to open without causing damage to the buffer tubes inside, but the MS-326 addresses that concern. The MS-326 will also slit thin wall buffer tubes. Building on the popularity of the Jonard Tools Ms-6 and ms-26 fiber optic Mid span slitting tools, we have incorporated a ring feature in the tool to make it even more versatile.
groove sizes: 5.0 - 5.6 mm | 6.0 - 6.6 mm | 7.2 - 7.8 mm | 7.8 - 8.4 mm | 9.4 - 10 mm
one side of the tool performs Radial/ring cuts and the other side slits the cable (longitudinal cut).
replacement blade set available, Part number: msb-5010
| Mid Span Slitter | Mid Span Slitter | Mid Span Slitter & Ringer | Mid Span Slitter & Ringer | Mid Span Slitter & Ringer | Mid Span Slitter & Ringer | |
|---|---|---|---|---|---|---|
| Slitter | ||||||
| Ringer | ||||||
| Cable Diameter | 1.2 - 3.3 mm | 2.9 - 6.8 mm | 1.2 - 3.3 mm | 2.9 - 6.8 mm | 5 - 10 mm | 5.8 - 12 mm |
| Cable Type | Outer Jackets, Loose Buffer Tubes | Outer Jackets, Loose Buffer Tubes | Outer Jackets, Loose Buffer Tubes | Outer Jackets, Loose Buffer Tubes | Thin-walled Jackets | Thick-walled Jackets (Up to 2.0 mm Thick) |
| # of Precision Grooves | 6 | 5 | 12 | 10 | 10 | 8 |
| Part No. | MS-6 | MS-26 | MS-306 | MS-316 | MS-326 | MS-426 |
| Replacement Blade Part No. | MSB-1533 | MSB-2968 | MS-306RB | MS-316RB | MSB-5010 | MS-426RB |
