12V Battery Disconnect Switch with LED Digital Voltmeter Display Dual Wireless Control C283
12V Battery Disconnect Switch with LED Digital Voltmeter Display Dual Wireless Control C283

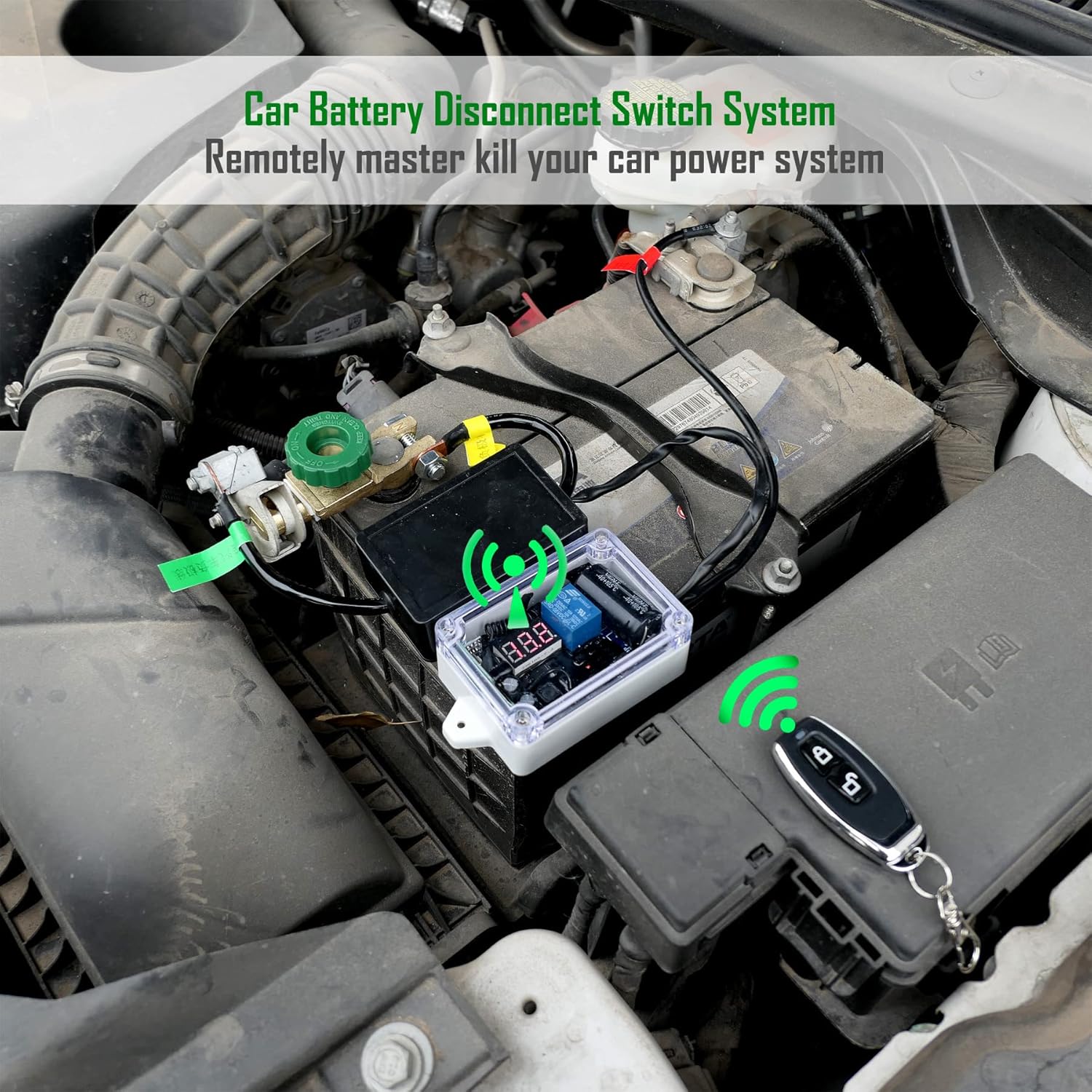

Remote Battery Disconnect Switch - Battery disconnect switch remotely master kill your car power system, A proper maintenance will extend and protect the battery and engine life, when installing the battery, the power must be turned off first, and the product cannot be installed and used when the battery is depleted
320 Feet 12V Remote Control Switch - Car battery can be wireless controlled remotely by the remote disconnect switch. The effective range of 318ft (97 M) can be adjusted in time. The power-off voltage can be set freely, and the negative bus of the battery can be controlled, ensure energy saving

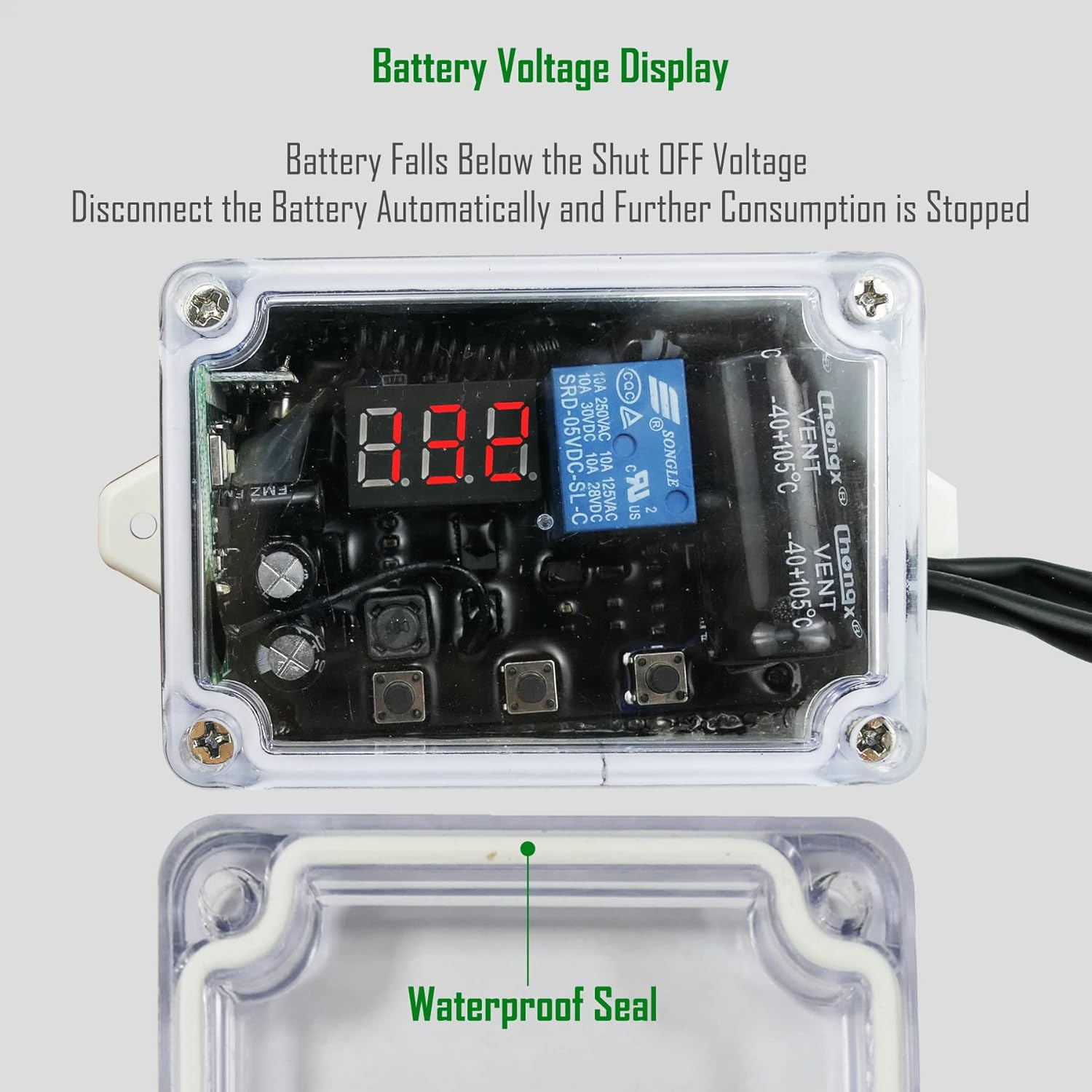

LED Digital Voltmeter Display - Battery cut off switch equipped with a digital display to monitor the battery status in real time, remind you to charge or replace the battery in time, and better avoid starting the car engine when the car battery is exhausted. In addition, if the car battery is lower than the shutdown voltage, it will automatically disconnect Battery and stop further consumption

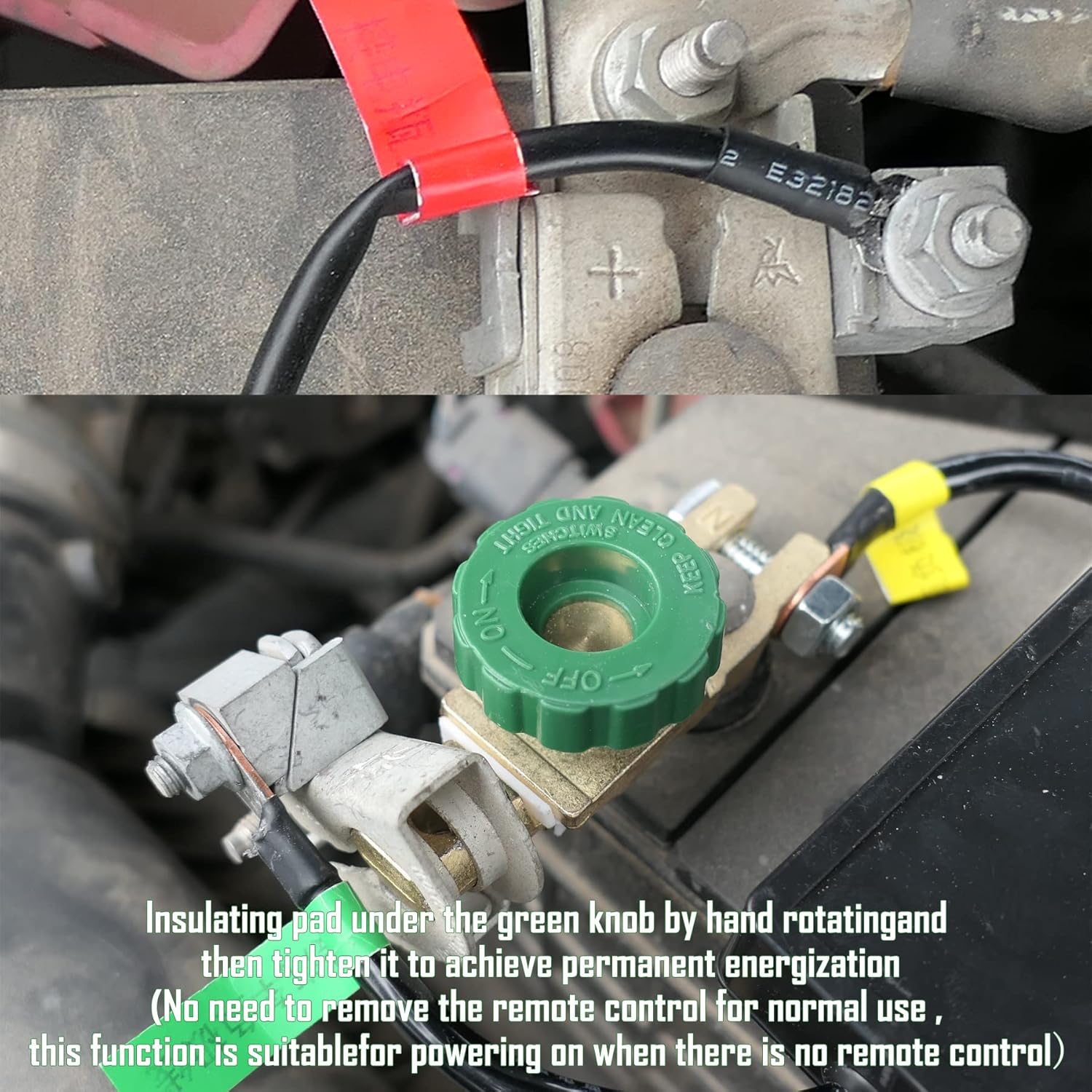

Rotating Green Button - Battery kill switch with an insulating pad under the rotating green button, remove and tighten it to achieve permanent power on, if loose 2-3 turns, the whole vehicle will be powered off, usually, the remote control does not need to be removed. The rotating green button is suitable for powering on without a remote control

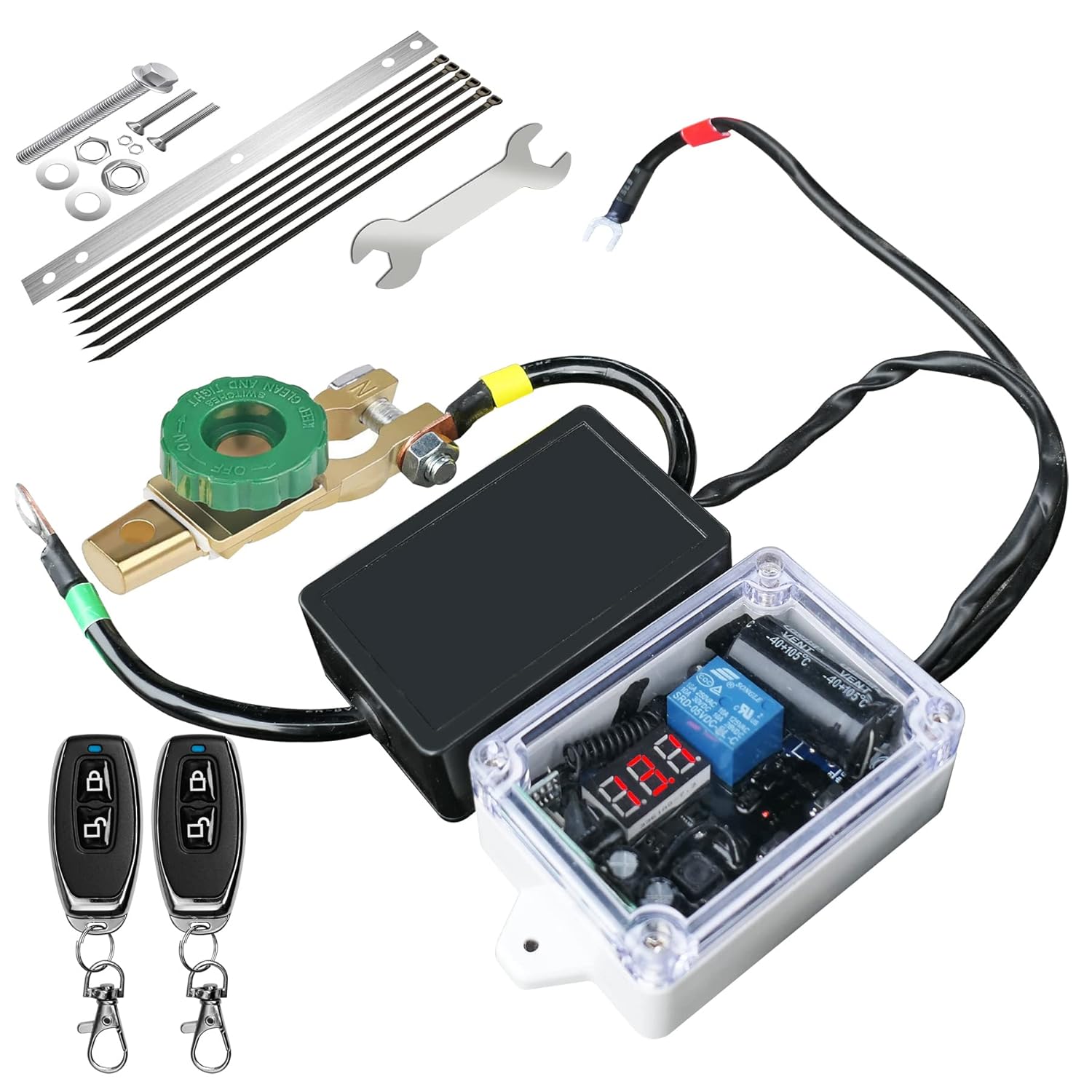

Universal for 12V Power System - The battery disconnect switch has a very wide range of applications, remote battery disconnect switch applicable to 12V DC power supply vehicles, including fit for Ford Chevrolet GMC Dodge and most cars, pickup, trucks, SUV, RV, Van, trailers, etc, and battery shut off switch comes with all necessary mounting accessories
Battery Disconnect Switch 12V
Control the negative bus of the battery. After the power is off, it is equivalent to cutting off all the electrical equipment of the car, to the greatest extent to ensure the conservation of electricity
The battery can be remotely switched on and off by the remote control, and the effective range of 97 meters is controlled. The method is simple and quick
Equipped with a Sudoku display for real-time monitoring of battery status
The remote control and the remote control only need to be paired once, which is convenient and simple
The power-off voltage can be set freely, which is very flexible and easy to adjust in time
Basic product parameters:
Working voltage: DC 8-16V
Rated voltage: DC 12V
Power-off current: 0.002A
Product weight: 300g
Whole machine working current: 0.25A
Operating temperature range: -40��-90��

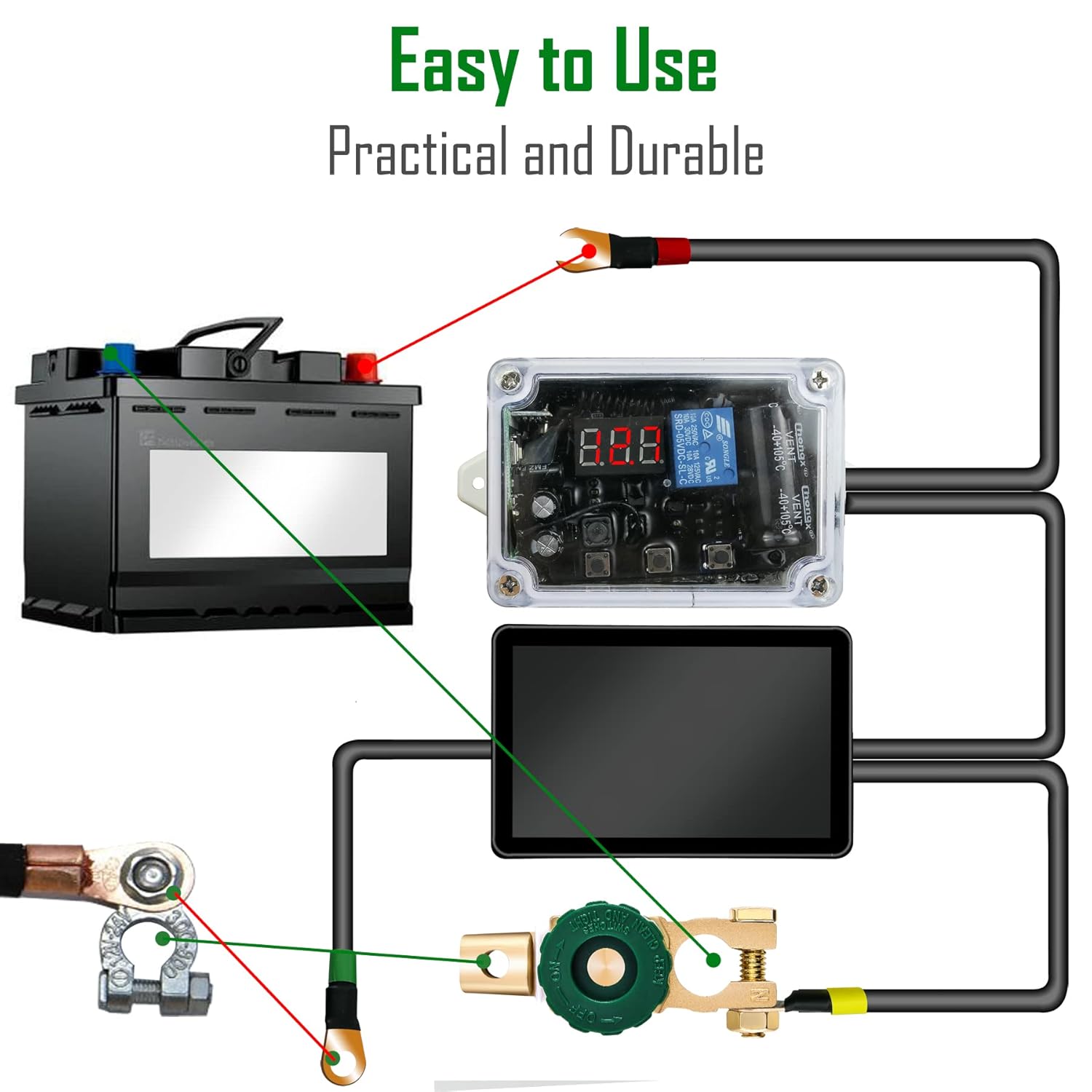

Installation method:
1: Disconnect the negative electrode of the battery
2: The thumb switch is fixed on the negative pole of the battery
3: Car negative wire and equipment fixing
4: Connect the positive pole of the device and do not move after the installation is successful
5: In order to prevent the battery from short-circuiting during the installation process, if you don��t know how to operate, please ask the dealer for help
Instructions:
1. The remote control can be used to directly operate the power-on and disconnection.
2. There is an insulating pad under the green button that is rotated by hand, and then tighten it to achieve permanent power supply
Note: 10 minutes after the device is powered on for the first time, the digital display is stable and the battery voltage is stable and the battery voltage is displayed. In other cases, the digital display does not represent the voltage. It is suitable for most cars by default, and it is not recommended to change it.
